Project Description

آلة إزالة الغبار من الخرسانة

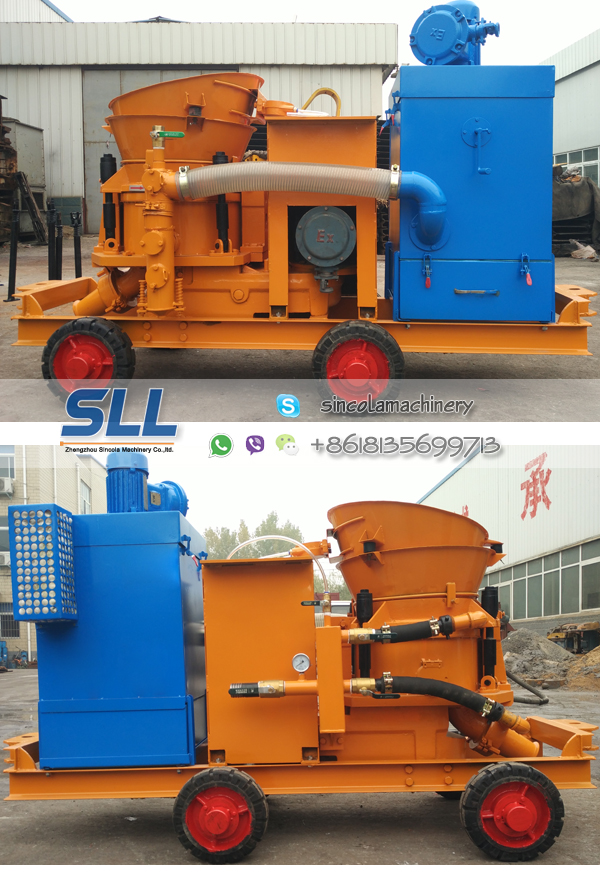

dustshotcretemachine01 dustshotcretemachine012 dustshotcretemachine02

Product Details:

Place of Origin: Zhengzhou,China
Brand Name: SINCOLA
Certification: ISO,CE,SGS
Model Number: SPZC

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: USD6380-8760
Packaging Details: Nude Package in 40ft container
Delivery Time: 3days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1sets 3day
Chat Now!
Inquiry
Model: SPZC Rated output: 4~6m3/h
Electrical appliances: SCHNEIDER,ABB Gear box: EVERGEAR(China)
Aggregate size: 15 or 25mm Max Conveying distance: 200m,HOSE ID:51mm,65mm
Driving Type: Electric 380V/400V/415V/460V/660V Driving Type : Electric Motor, Diesel engine, Air motor

قائمة المنتجات

Model

SPZC Shotcrete Machine

Capacity

4~6m3/h

Delivery distance

100m/30m (horizontal/vertical)

Max. aggregate size

≤20mm

Delivery pipe ID.

φ51mm

Rated working pressure

0.5MPa

Air consumption

≤8m3/min

Feeding height

1.1m

Rebound rate

≤20%

Dust concentration

≤15mg/ m3

Rotor speed

11r/min

Main motor power

5.5 kW /7.5 kW

Auxiliary motor power

1.1kW

Main motor speed

960r/min

Capacity of accelerator adding hopper

25kg

Voltage grade

380V (Non-mining)
380/660V or 660/1140V (Mining)

Machine gauge (Mining)

600 (900)mm

Dimensions (Length×width×height)

2150×900×1750 mm
(including accelerator adding device)
2150×900×1470 mm
(excluding accelerator adding device)

Total weight

760 Kg

Features of Dedusting concrete shotcrete machine

1.SPZC Dedusting Shotcrete Machine obtains the Invention Patent and Utility Model Patent. The machine structure and spraying nozzle have new designs.
2.New environmental shotcrete machine, less environmental pollution (less than 90% of dust pollution of traditional machine), less harm to workershealth.
3.New spraying nozzle device, even concrete mixing, low rebound rate.
4.Adding accelerator automatically and evenly, saving workers.
5.Compact machine structure, simple operation, suitable for concrete operation in narrow space.

Application:

  1. Collection and exhaust device of leaked air of hopper, rotor liner plates, reducing the dust leakage.
  2. New dust removal technology and filter material, with good filtering effect and long service life.
  3. Drawer-type dust container, convenient to clean.
  4. Spraying nozzle system with multiple circular water adding device, ensuring even mixing.
  5. Accelerator added by vibration, ensuring micro adjustment and proper adding ratio.
