Diamantdrahtsäge-Steinschneidemaschine

///Diamantdrahtsäge-Steinschneidemaschine
Diamantdrahtsäge-Steinschneidemaschine2019-08-08T08:20:57+00:00

Projektbeschreibung

Quarry diamond wire saw stone cutting machine

concrete wire saw concrete wire saw machine concrete sawing machine

Produktdetails:

Herkunftsort: Zhengzhou,China
Markenname: SINCOLA
Zertifizierung: ISO,CE,SGS
Modell-Nr: SLL-55-3

Zahlung & Versandbedingungen:

Mindestbestellmenge: 1Sätze
Preis: USD4500-6800
Verpackungsinformationen: Standard-Holzverpackung ODER Nacktpaket im 20-Fuß-Container
Lieferzeit: 7-15 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Lieferfähigkeit: 500 Satz/Monat
Jetzt chatten!
Anfrage
Modell SLL-55-3 SLL-75-3
Main motor power 55KW 75KW
Main pulley dia. 800mm 900mm
Wire saw speed 0-40m/s 0-40m/s
Walking motor power 1.5KW 1.5KW
Leteral moving distance 400mm 400mm
Max.cutting distance 1750mm 1750mm
Rotation angle 270 270
Walking Speed of machine 0-40m/s 0-40m/s
Allowed working temperature -15—40 -15—40
Dimention: L*W*H 2156*1468*1620 2156*1468*1620
Net weight kg 3300kg 3500kg

PRODUKTLISTE

Modell SLL-55-3
Main motor power 55KW
Main pulley dia. 800mm
Wire saw speed 0-40m/s
Walking motor power 1.5KW
Leteral moving distance 400mm
Max.cutting distance 1750mm
Rotation angle 270
Walking Speed of machine 0-40m/s
Allowed working temperature -15—40
Dimention: L*W*H 2156*1468*1620
Net weight kg 3300kg
concrete wire saw cutting machine

concrete wire saw cutting machine

quarry rock wire sawing machine

quarry rock wire sawing machine

stone cutting machine

stone cutting machine

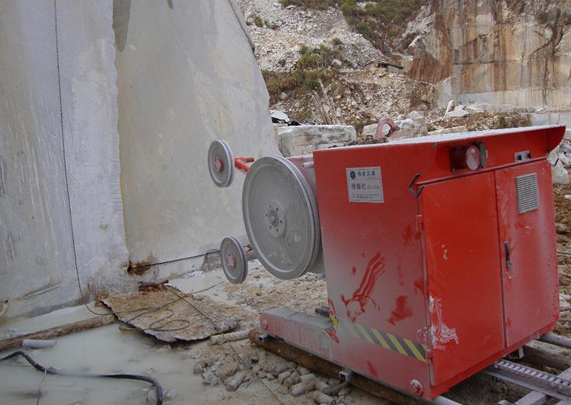

The wire saw can apply horizontal,bertical and acclivitous and other direction cutting in the quarry.Diamond wire saw can exploit large specification and regular blocks,the cutting fact is smooth and less hurt to the block, the thin crack of the stone operation can improve the working condition,and increase the safety factor.

quarry rock cutting machine

quarry rock cutting machine

Diamond Wire Saw Machine for Concrete Stone Cutting is used to cut concrete and rock walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks.If you are interested, please let us know which type of diamond wire saw beads you need.

concrete stone cutting machine

concrete stone cutting machine

(1) Advanced technology design and manufacturing, mining for granite, marble, sandstone.
(2) Adjustment of the head and rotation electric control high degree of automation.
(3) High-performance inverter output torque constant. The constant tension control theory, according to the cutting force changes automatically adjust the feed speed of the adjustment process is stable and reliable, to ensure the best cutting state.
(4) Console using the intelligent instrument control, real-time sworn the main motor current, travel speed and cutting time and other parameters, easy to control.

rock stone cutting machine

rock stone cutting machine
