Описание Проекта
Steel bar bending machine
информация о продукте:
| Место происхождения: | Чжэнчжоу,Китай |
|---|---|
| Имя бренда: | СИНКОЛА |
| Сертификация: | ИСО,CE,СГС |
| Номер модели: | SWH |
Оплата & Условия доставки:
| Минимум для заказа: | 1наборы |
|---|---|
| Цена: | USD500-4000 |
| Детали упаковки: | Стандартная деревянная упаковка ИЛИ упаковка Nude в 20-футовом контейнере |
| Срок поставки: | 1дни |
| Условия оплаты: | аккредитив, Д/А, Д/П, Т/Т, Western Union, MoneyGram |
| Возможность поставки: | 6sets 1day |
| Модель | SWH-40 | Bending bar diameter: | 3240мм |
|---|---|---|---|
| Radius of curved circular arc: | 300мм | Bending speed | 20m/min |
| Власть: | 4kw | Масса: | 600кг |
СПИСОК ПРОДУКТОВ
| Specification | |||||
| SWH24 | SWH32 | SWH40 | SWH45 | SWH50 | |
| Bending bar diameter | Φ12—24mm | Φ25—32mm | Φ32—40mm | Φ40—45mm | Φ45—50mm |
| Radius of curved circular arc | ≥100mm | ≥150mm | ≥300mm | ≥400mm | ≥500mm |
| Bending speed | 20m/min | 20m/min | 20m/min | 20m/min | 20m/min |
| Motor power | 3КВт | 4КВт | 4КВт | 4КВт | 5.5КВт |
| motor speed | 1440об/мин | 1440об/мин | 1440об/мин | 1440об/мин | 1440об/мин |
| Напряжение | 380В | 380В | 380В | 380В | 380В |
| Shape size(мм) | 860*600*700 | 960*760*800 | 1180*1000*880 | 1180*1000*880 | 1180*1000*880 |
| Whole machine quality | 360KG | 430KG | 600KG | 630KG | 680KG |

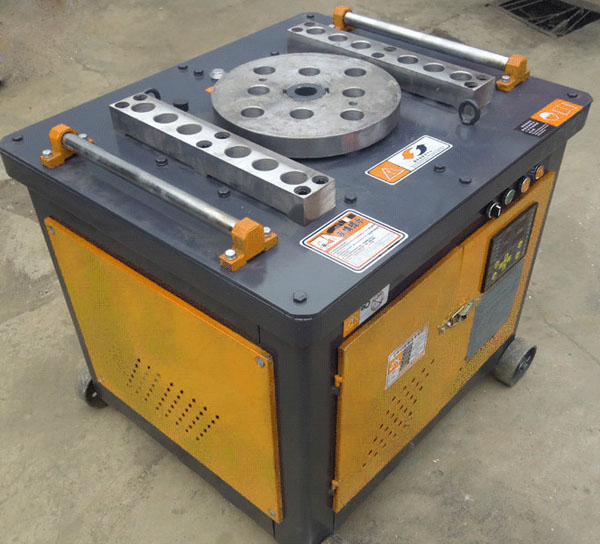

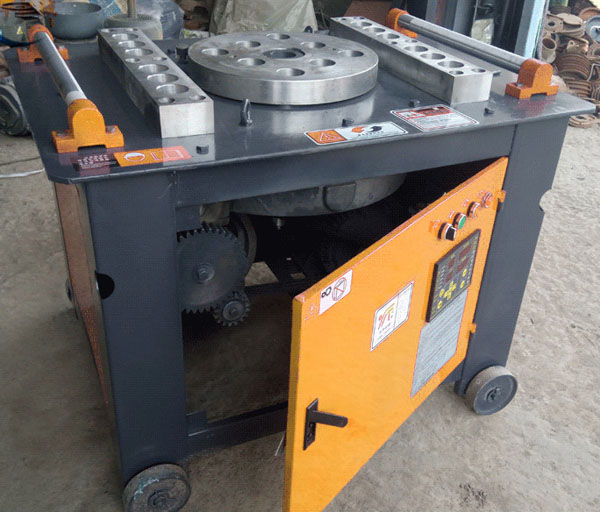

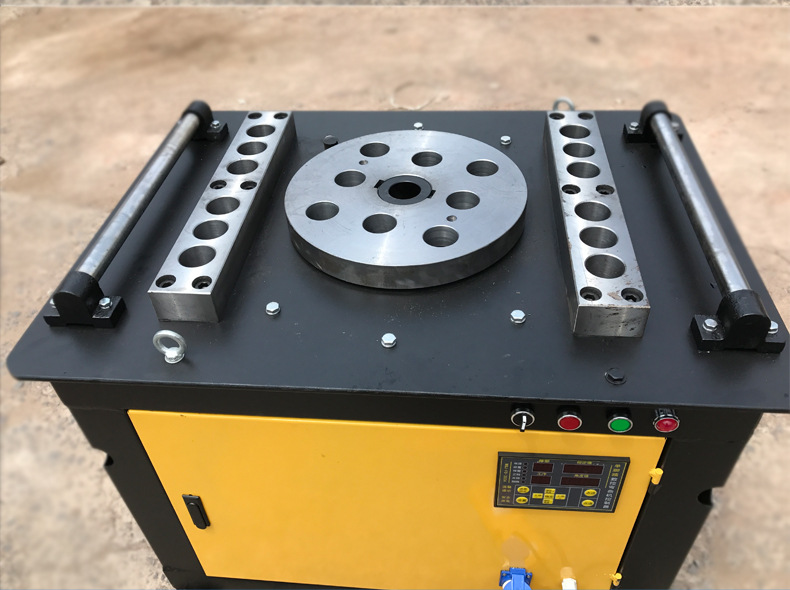

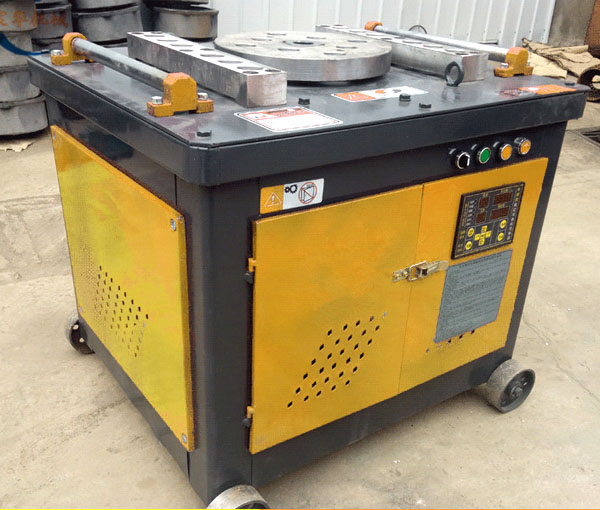

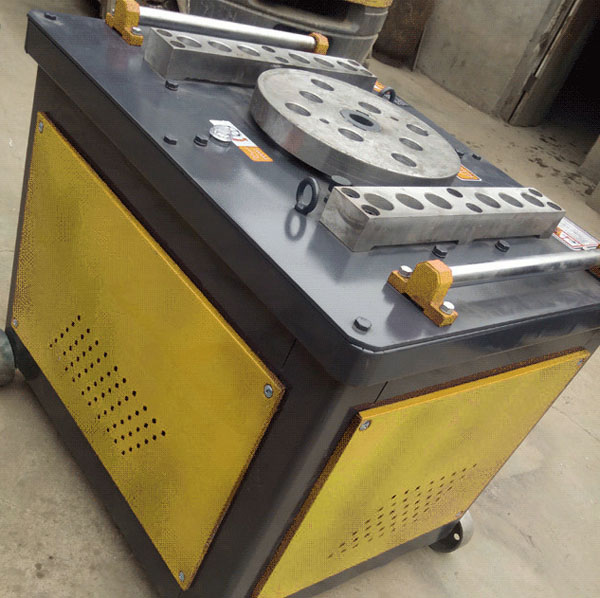

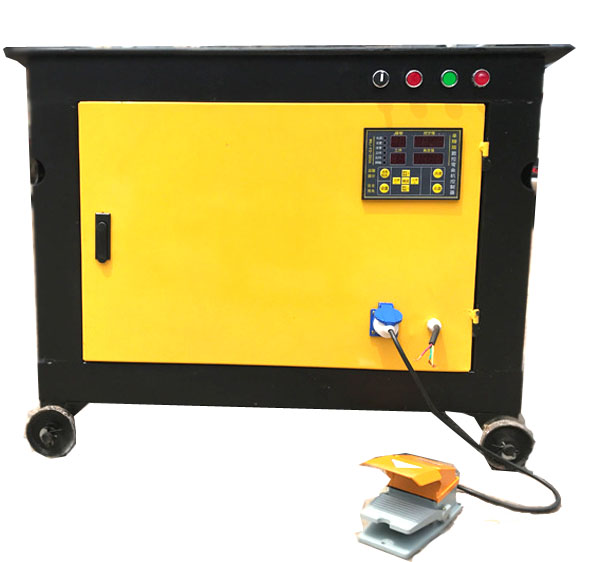

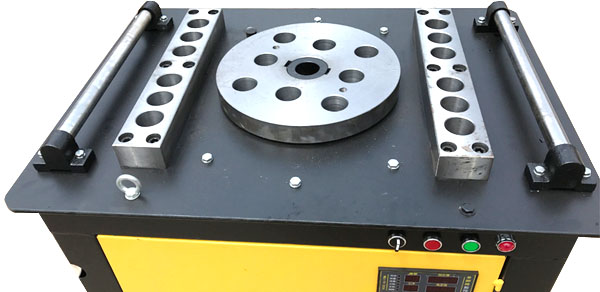

steel bar bending machine

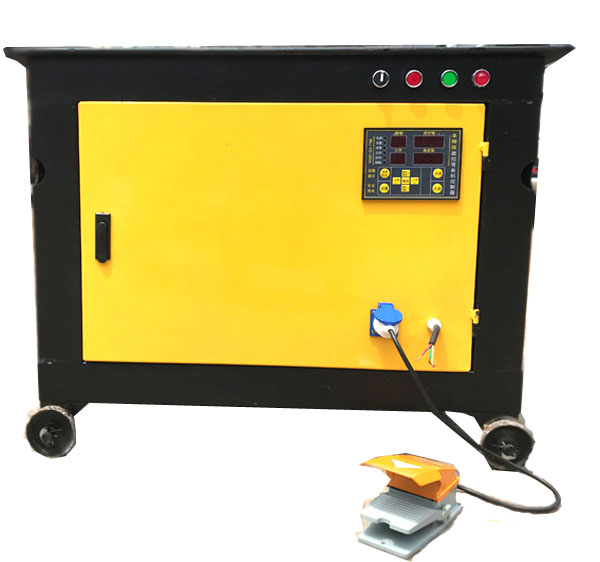

steel bar bending machine
steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
-
- steel bar bending machine
steel bar bending machine

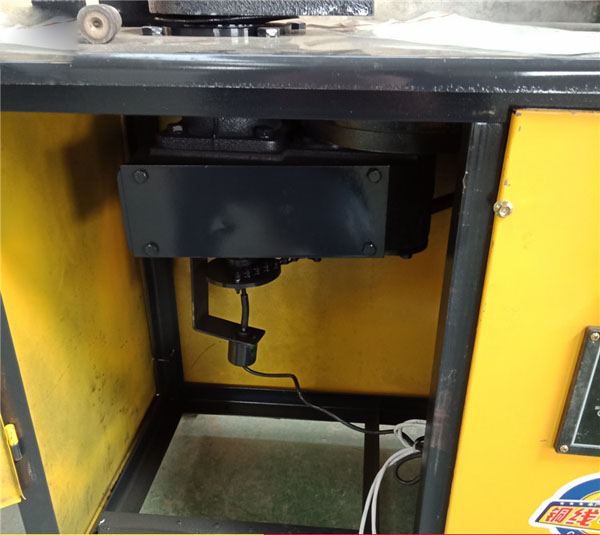

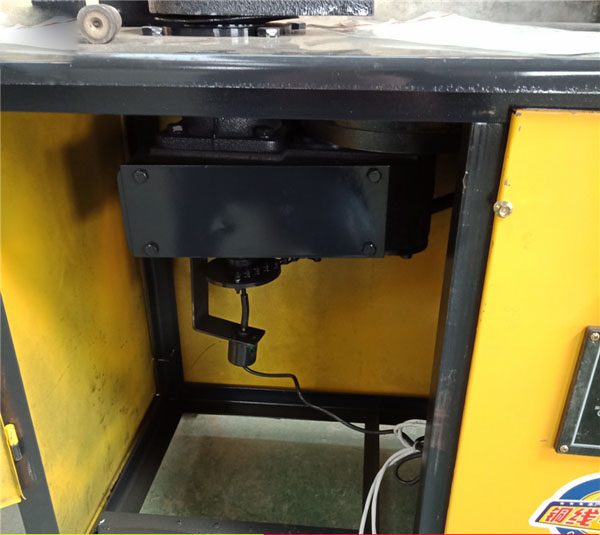

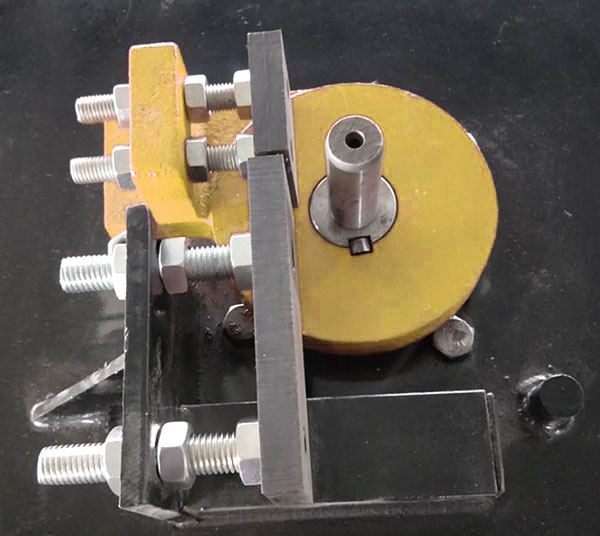

SWH40 adopts the fully enclosed gear box for less distortions even under the condition of heavy loads.

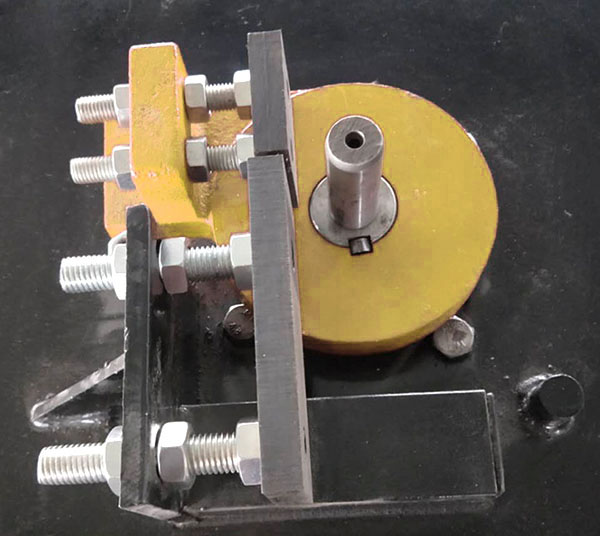

Gear shaft, working disk, stop gauge,saddles,pipe head and pile head bushes made of forged high-quality.
Alloyed steel with proper heat(quenching/temering/high frequency)and 2mm thick external case to ensure high.
Performances also under heavy loads and long working life.

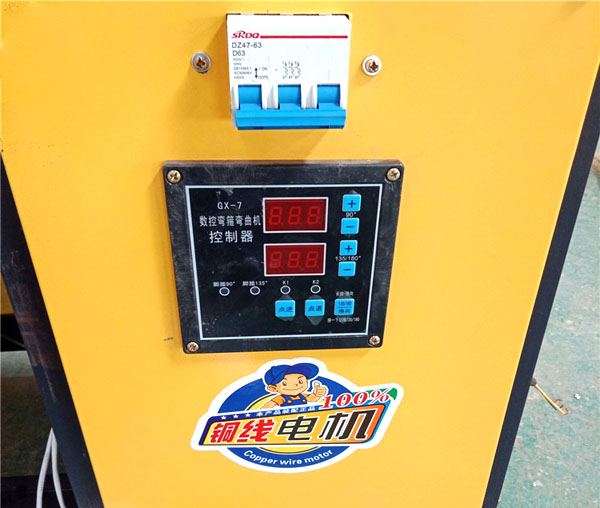

Two limit-switch to ensure the accuracy of the bending angle.

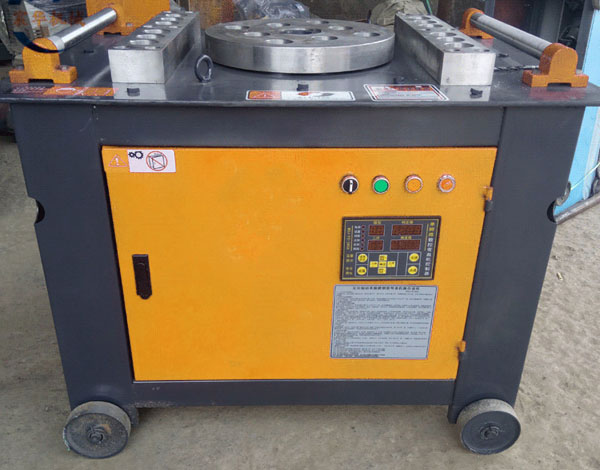

steel bar bending machine
Features of steel bending machine:
All the parts are strictly made according to the standard issued by the ministry. The gears are treated with high frequency quench, having the functions of high load moment, stable and reliable performance.

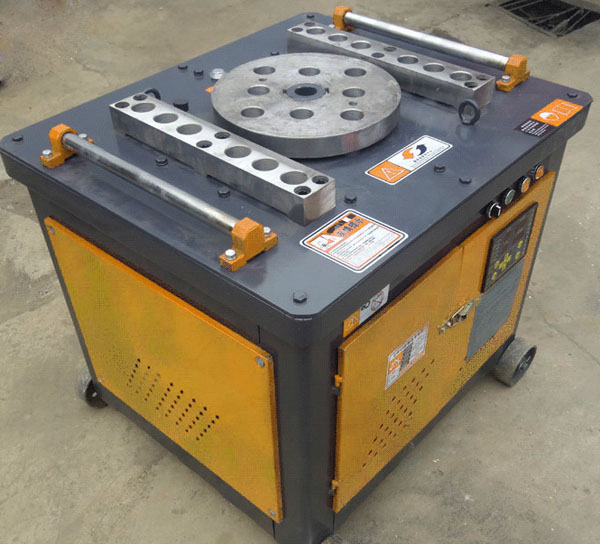

steel bar bending machine
Application range of steel bending machine:
Steel bending machine is mainly used to bend the round steel with 6-50mm in diameter and the screw-thread steel with 8-40mm in diameter of the II class.
