| 模型 | SWH-40 | Bending bar diameter: | 3240毫米 |
|---|---|---|---|
| Radius of curved circular arc: | 300毫米 | Bending speed | 20m/min |
| 力量: | 4千瓦 | 重量: | 600公斤 |
产品列表
| Specification | |||||
| SWH24 | SWH32 | SWH40 | SWH45 | SWH50 | |
| Bending bar diameter | Φ12—24mm | Φ25—32mm | Φ32—40mm | Φ40—45mm | Φ45—50mm |
| Radius of curved circular arc | ≥100mm | ≥150mm | ≥300mm | ≥400mm | ≥500mm |
| Bending speed | 20m/min | 20m/min | 20m/min | 20m/min | 20m/min |
| Motor power | 3KW | 4KW | 4KW | 4KW | 5.5KW |
| motor speed | 1440转速 | 1440转速 | 1440转速 | 1440转速 | 1440转速 |
| 电压 | 380V | 380V | 380V | 380V | 380V |
| Shape size(毫米) | 860*600*700 | 960*760*800 | 1180*1000*880 | 1180*1000*880 | 1180*1000*880 |
| Whole machine quality | 360KG | 430KG | 600KG | 630KG | 680KG |
钢筋弯曲机
钢筋弯曲机
钢筋弯曲机
-
- 钢筋弯曲机
-
- 钢筋弯曲机
-
- 钢筋弯曲机
-
- 钢筋弯曲机
-
- 钢筋弯曲机
-
- 钢筋弯曲机
-
- 钢筋弯曲机
-
- 钢筋弯曲机
-
- 钢筋弯曲机
-
- 钢筋弯曲机
-
- 钢筋弯曲机
-
- 钢筋弯曲机
钢筋弯曲机

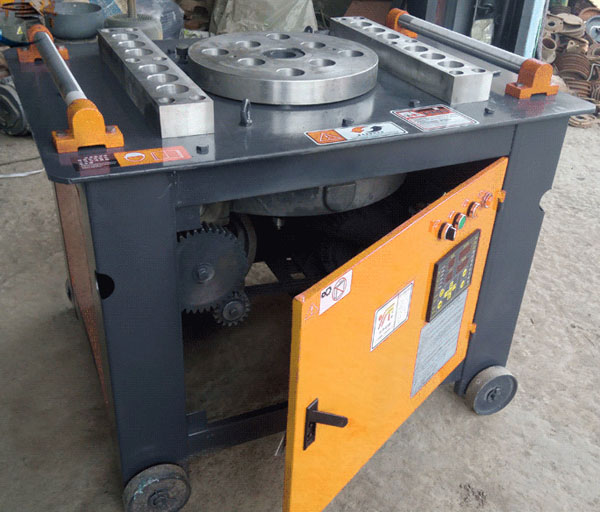

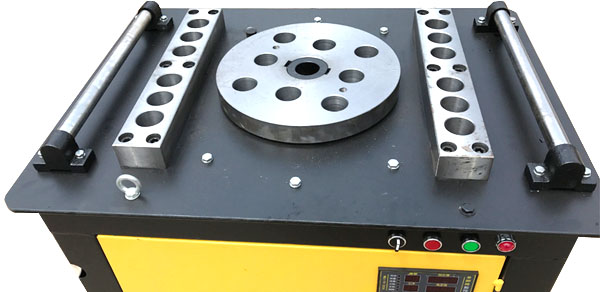

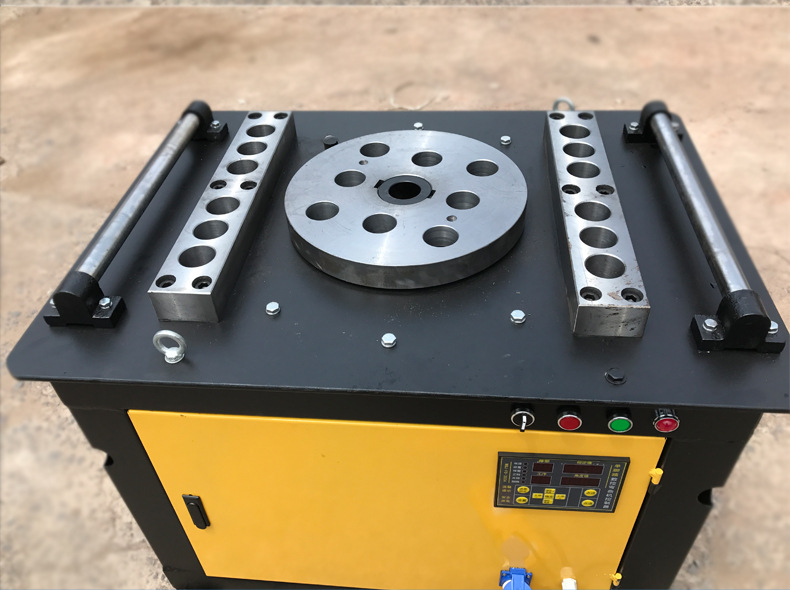

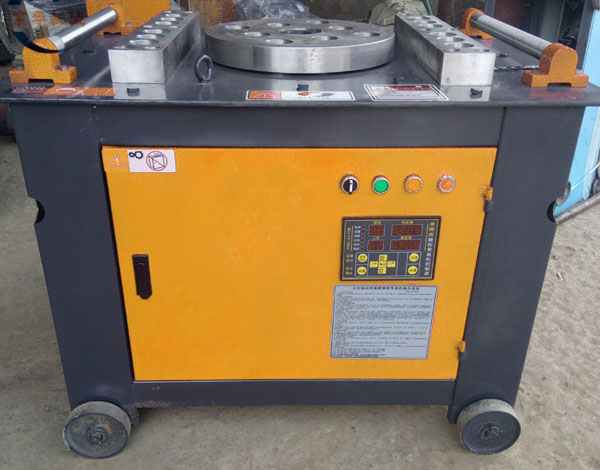

SWH40 adopts the fully enclosed gear box for less distortions even under the condition of heavy loads.
Gear shaft, working disk, stop gauge,saddles,pipe head and pile head bushes made of forged high-quality.
Alloyed steel with proper heat(quenching/temering/high frequency)and 2mm thick external case to ensure high.
Performances also under heavy loads and long working life.

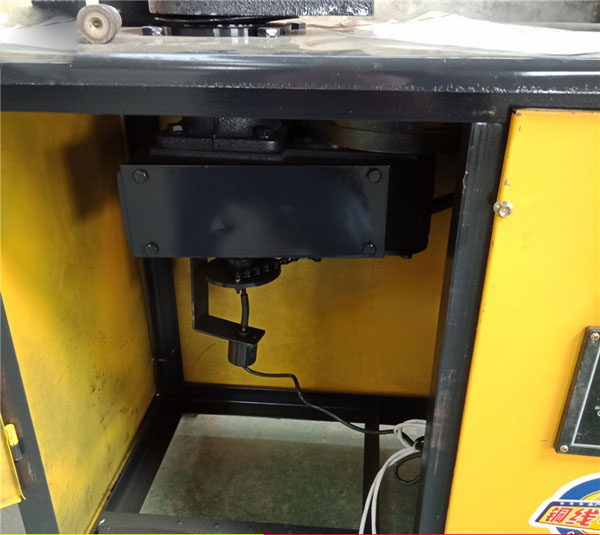

Two limit-switch to ensure the accuracy of the bending angle.
钢筋弯曲机
Features of steel bending machine:
All the parts are strictly made according to the standard issued by the ministry. The gears are treated with high frequency quench, having the functions of high load moment, stable and reliable performance.
钢筋弯曲机
Application range of steel bending machine:
Steel bending machine is mainly used to bend the round steel with 6-50mm in diameter and the screw-thread steel with 8-40mm in diameter of the II class.
