High Pressure Grouting Injection Pump

Product Details:

Place of Origin: Zhengzhou,China
Brand Name: SINCOLA
Certification: ISO,CE,SGS
Model Number: GPH-90

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: USD4500-6800
Packaging Details: Standard wooden packing OR Nude Package in 20ft container
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 set/month
Chat Now!
Inquiry
No Main Technical Parameters Unit
Motor Power 55KW 90KW
1 Motor Model GPH90-6 GPH90-4 /
2 Form of Action Horizontal reciprocating single acting plunger type Horizontal reciprocating single acting plunger type /
3 Plungers Quantity 3 3 piece
4 Plunger diameter 50 50 mm
5 Work schedule 100 100 mm
6 Input Rotating speed 390~900 590~1330 r/min
7 Output 32~75 50~110 L/min
8 Working Pressure 36 40 MPa
9 Suction pipe diameter 64 64 mm
10 Discharge pipe diameter 25 25 mm
11 Dimensions 2820×1270×1220 2820×1270×1220 mm
12 Total Weight 3380 3450 Kg

PRODUCTS LIST

No Main Technical Parameters Unit
Motor Power 55KW 90KW
1 Motor Model GPH90-6 GPH90-4 /
2 Form of Action Horizontal reciprocating single acting plunger type Horizontal reciprocating single acting plunger type /
3 Plungers Quantity 3 3 piece
4 Plunger diameter 50 50 mm
5 Work schedule 100 100 mm
6 Input Rotating speed 390~900 590~1330 r/min
7 Output 32~75 50~110 L/min
8 Working Pressure 36 40 MPa
9 Suction pipe diameter 64 64 mm
10 Discharge pipe diameter 25 25 mm
11 Dimensions 2820×1270×1220 2820×1270×1220 mm
12 Total Weight 3380 3450 Kg

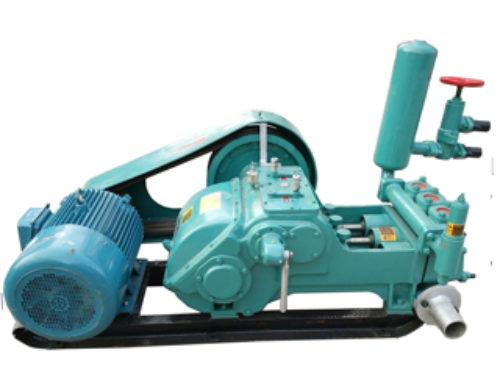

cement grout pump

cement grout pump

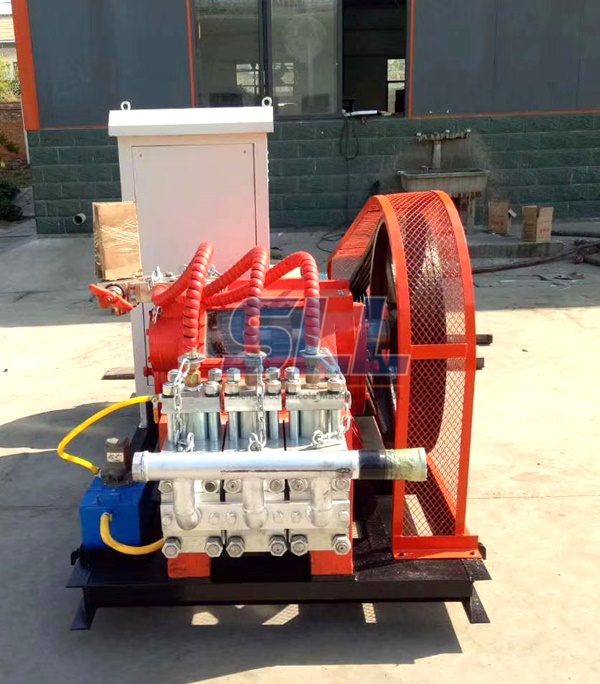

grouting pump

grouting pump

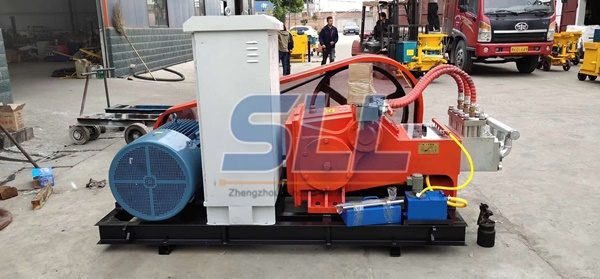

Grouting Injection Pump

Grouting Injection Pump

Cement grouting pump is designed according to the market demand of high-pressure grouting pump. This product combined split type pump hydraulic end, motivation to use needle bearing type transmission, low noise, low temperature, ensure 24 hours of continuous operation, suitable for foundation treatment of high-pressure rotary jet grouting, curtain grouting, soil retaining cofferdam anchorage, mine well plugging, the barrel wall, slope and other fields.

grouting pump

grouting pump

Application

○ Soft foundation treatment, high pressure rotary jet grouting;
○ High-pressure water jet assists in breaking rock and falling coal;
○ Coal mine underground hydraulic props supply liquid;
○ Anchoring hydraulic expansion metal paving rod to pump high pressure water;
○ Underground large pipeline dredging cleaning;
○ Chemical pump;
○ High-pressure water jet, horizontally drilling through holes;
○ Pump for grouting for other purposes;

cement grouting machine

cement grouting machine

(1) The pumping capacity is adjustable to meet different demands of injection or drilling technology.
(2) The total displacement in a unit time is basically constant and the impact of discharge pressure variance upon the total displacement is negligible.
(3) Throttle nuts are conveniently used to control and shield pressure.
(4) For the sake of safety in production, no exterior moving parcel is involved when the pump is running in operating mode.
(5) Antifriction materials are adopted in the production of sealing element which can enjoy a long performance life. .
(6) It’s easy to install and dismantle this pump.
(7) This pump is compact in size, light in weight and agile in removal.
