Name |
Specifications |
Model |
SJB38 |
Production capacity |
1.2~3.6m3 /h |
Inner diameter of the conveying hose: |
Out Φ38mm/suction Φ51mm |
Delivery pressure |
2MPa |
Machine weight |
470kg |
Dimensions |
1550x950x1080mm |
Maximum conveying distance |
120/30 (horizontal/vertical) |
Maximum aggregate diameter |
5mm |
Motor power |
2.2/3.3/4kw |
Voltage rating |
380v |
Oil pump motor Specification |
(2.2/3.3/4KW) model (132m6) |
Extrusion tube size |
51mm |
Suction tube specifications |
64mm |
Grouting pipe specifications |
Ø38*16M |

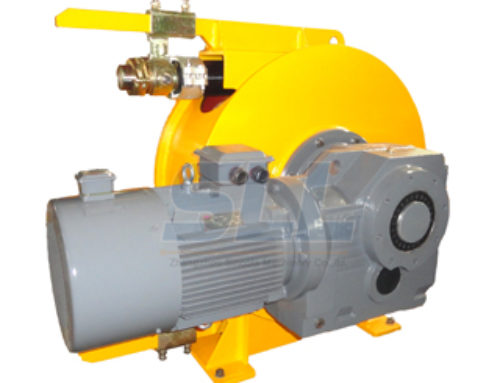

Squeeze injection pump
Squeeze grout pump
Squeeze grout pump
injection pump
Squeeze injection pump
Squeeze injection pump machine can be used for three-speed shifting, and also has a positive and negative switch, which can be directly used with the mixer. The SJB38 squeeze grouting pump has the characteristics of small size, light weight and flexible operation, which is highly loved by engineering experts. Squeeze injection pump machine is the preferred model for engineering grouting.
The main function of SJB38 Squeeze injection pump machine extrusion type grouting pump is to transport the mortar horizontally and vertically, which can be adjusted. The inner diameter of the extruded pipe is Φ51mm, and the grouting amount is large.
- Squeeze injection pump is widely used in tunnel grouting operations in metallurgy, national defense engineering, civil air defense engineering, farmland, water conservancy projects and railway construction projects;
- Squeeze injection pump is also suitable for the transportation of chemical and electrical raw materials and pulverized coal mortar. It also has the functions of cleaning and grouting at the bottom of cement concrete pavement in highway pavement maintenance.
The SJB38 squeeze grouting pump has the characteristics of small size, light weight and flexible operation, which is highly loved by engineering experts.
