Project Description

Mining Application Drilling Rigs with High efficiency

Product Details:

Place of Origin: Zhengzhou,China
Brand Name: SINCOLA
Certification: ISO,CE,SGS
Model Number: SQD

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: USD6530
Packaging Details: Nude Package in 40ft container
Delivery Time: 5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1sets 3day
Chat Now!
Inquiry
Model: SQD Borehole diameter: 50-130mm
Borehole depth: ≥15-20m One-time advance length: 1000mm
Swing speed: 90 r/min Working air pressure: 0.5~0.7Mpa
Cylinder diameter:  50-140mm Driving power
3-12.1kw

PRODUCTS LIST

Model
Parameters
SQD70 SQD100A SQF100 SQJ100A
electric
SQJ100A
diesel
Rock hardness F=6~20 F=6~20 F=6~20 F=6~20 F=6~20
Borehole diameter mm 50~80 68~130 68~130 68~130 68~130
Borehole depth m ≥15 ≥20 ≥20 ≥20 ≥20
One-time advance length mm 1000 1000 1000 1000 1000
Swing speed r/min 90 90 110~160 0~70 0~70
Air consumption m3/min ≥3.5 ≥7 ≥12 ≥7 ≥7
Working air pressure Mpa 0.5~0.7 0.5~0.7 0.5~0.7 0.5~0.7 0.5~0.7
Cylinder diameter mm 90 140 140 50 50
Max. lifting force N 4200 7000 7000 15000 15000
Max. advance force N 3500 5000 5000 4500 4500
Whole weight kg 175 260 260 260 260
Driving power kw 3 4 4 7.5 12.1

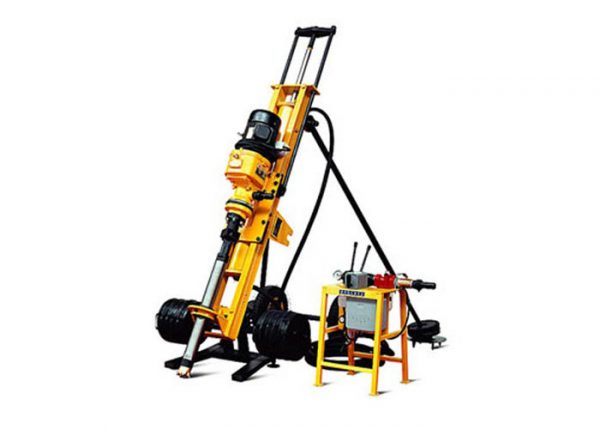

Drilling machine

Drilling machine

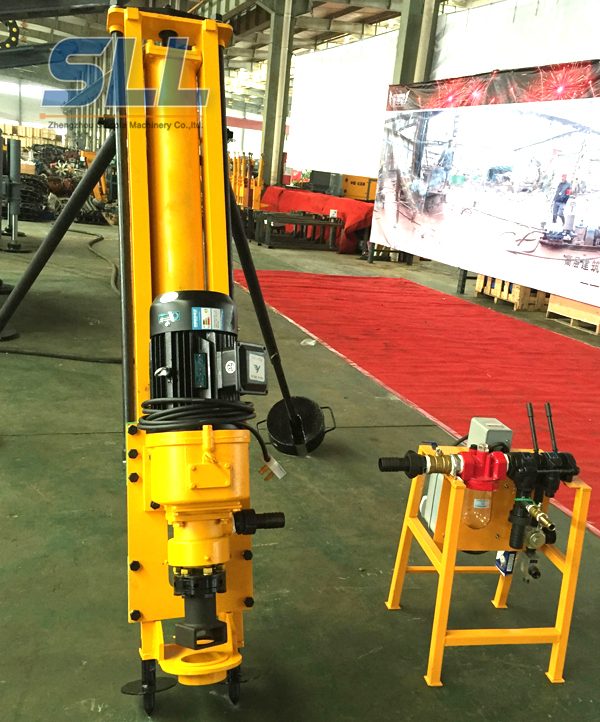

Drilling Rig

Drilling Rig

  • drilling machine

    drilling machine

    Mobile Drilling Rig For Shotcrete Low center of gravity,easy to fold and to move.

  • Drilling machine For Shotcrete Rotator reducer with high torque ensure operating reliable in the case of strong vibrations or heavy duty.
  • Drilling Rig For Shotcrete Propulsion system equipped with relief valve,adjusting propulsion,ensure excellent performance
  • Rotary drilling rig For Shotcrete Different types,such as hydraulic and electric,and pneumatic.
  • Borehole drilling machines For Shotcrete Simple structure,easy to operate,low cost.
Drilling rig

Drilling rig

High efficiency simple Drilling Rigs are a new, highly efficient and extensively applied open-air rock drilling equipment designed by our company, which is extensively suitable for small and medium sized mines and the projects such as communications, national defense, water conservancy and stonework, in particular the rough and rugged terrains and land forms where other drills are unable to operate normally.

Highly adaptable pneumatic drill rig:

  1. Propulsion, rotation and impact are all powered by compressed air, with simple structure, single power and easy relocation.
  2. The three supporting structures are available in single top, double top and support type, which can adapt to any geological landscape.
  3. Control mechanism centralized, easy and quick operation.
  4. Unique double muffler has a good sound-absorbing effect and reduces environmental pollution.

Efficient and energy-saving electric drill rig:

  1. Drilling rig

    Drilling rig

    Drilling Rig is economical, efficient and energy – saving with ordinary motor.

  2. Using  cycloidal pinwheel reducer, large turning torque and high rock drilling efficiency.
  3. Drilling machine the novel overload protection makes the drill run stably and reliably.
  4. There are three kinds support structures: single top, double top and support type for choice, which can be adapted to any geological landform.
  1. borehole drilling machines Small size, light weight,and is suitable for places where large and medium-sized drilling rigs cannot work. It is convenient and flexible.
  2. The down-the-hole drilling rig uses electric energy as power, with low noise and strong power.
  3. High efficiency, The drilling speed is 3-8 times that of the general rock drill,  the rock hardness can reache 9, and the drilling depth is 8-16 meters per hour
