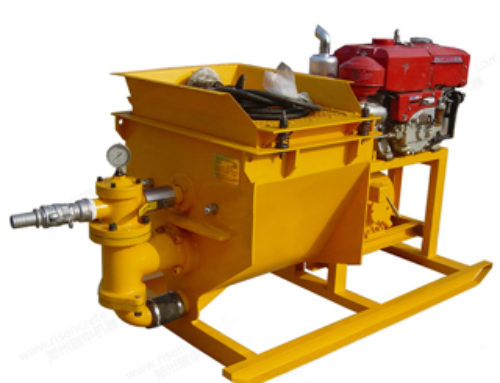

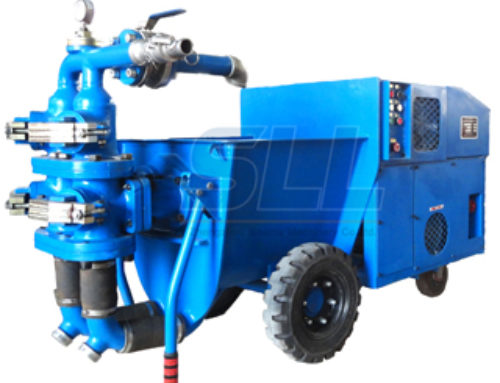

Single Cylinder Mortar Pump

///Single Cylinder Mortar Pump
Single Cylinder Mortar Pump2018-05-21T09:58:15+00:00

Project Description

Single Cylinder Mortar Pump

Product Details:

Place of Origin: Zhengzhou,China
Brand Name: SINCOLA
Certification: ISO,CE,SGS
Model Number:  SG5040

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: USD4380-6870
Packaging Details: Nude Package in 40ft container
Delivery Time: 5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1sets 3day
Chat Now!
Inquiry
Model: SG5040 Rated output: 50 L/min
Cylinder Dia: φ 90 mm Working Pressure: 4 MPa(40bar, 580psi)
Piston stroke: 85 mm Piston Speed: 95 /min
Inlet diameter: 75 mm Outlet diameter: 50 mm

PRODUCTS LIST

Model: SG5040
Output 50 L/min
Cylinder Dia φ 90 mm
Working Pressure 4 MPa(40bar, 580psi)
Piston stroke 85 mm
Piston Speed 95 /min
Inlet diameter 75 mm
Outlet diameter 50 mm
Max. Aggregate. size 6 mm
Cement/Sand ≥ 1/3
Power 5.5 kW(Electric)/10hp(Diesel)
Overall Dimensions 1610× 1024× 900 mm
Weight 300 kg

Introduction Of Single Cylinder Mortar Pump

OG5040 MORTAR PUMP with single cylinder and double acting is widely used for its convenient maintenance, high working pressure and high efficiency, working reliability, compact structure etc. it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.

Features of Single Cylinder Mortar Pump

1.Single piston single acting;
2.Switch by ball valve;
3.Mechanical transmission, lower failure rate;
4.Integrate pump head and hopper; prevent eduction and deposition together with the paddle agitating;
5.Compact structure, convenient for maintaining ;

Applications Of Single Cylinder Mortar Pump

Single Cylinder Mortar Pump is widely used for its convenient maintenance.it can be used not only for grouting cement mortar and sand mortar, combined with accessories such as compressor and spraying gun, it is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.

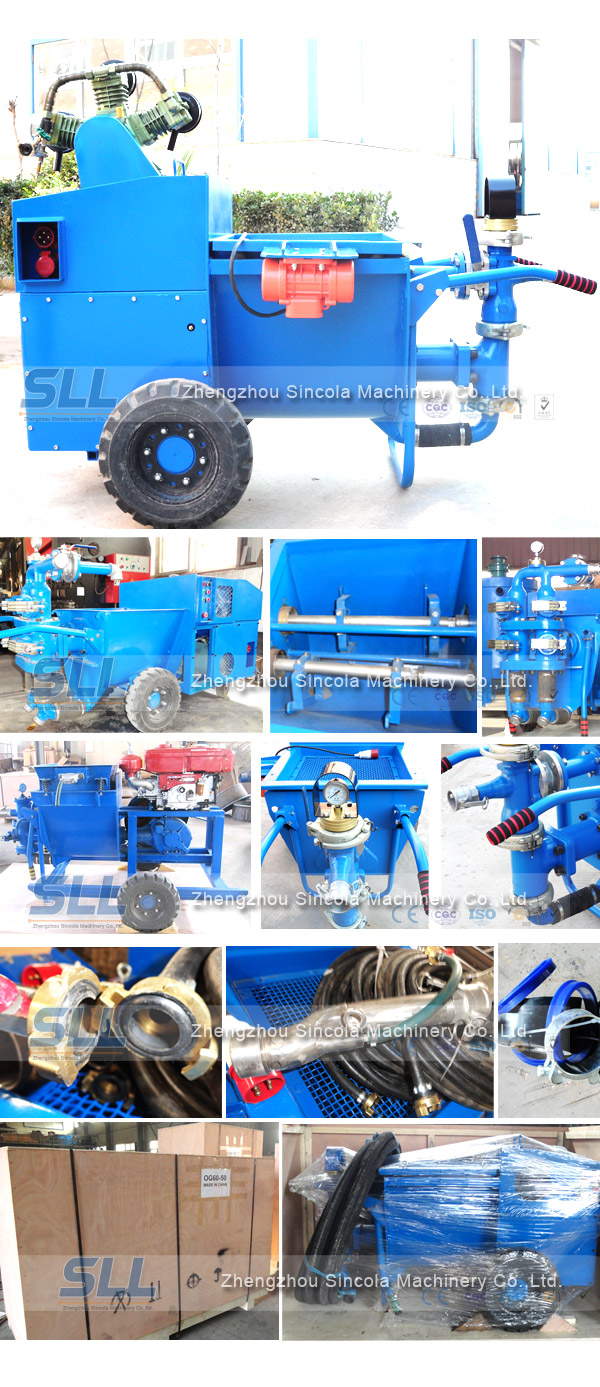

The SG5040 Mortar Pump is available in the following versions.
BASIC Electric drive
DIESEL engine drive
