Wet mix shotcrete machine
|Place of Origin:||Zhengzhou,China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1sets|
|Packaging Details:||Nude Package in 40ft container|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||1sets 3day|
|Model:||SPZ3000||Rated output:||5 m3/h|
|Electrical appliances:||SCHNEIDER,ABB||Gear box:||EVERGEAR(China)|
|Aggregate size:||15 or 25mm||Max Conveying distance:||200m,HOSE ID:51mm,65mm|
|Driving Type:||Electric 380V/400V/415V/460V/660V||Driving Type :||Electric Motor, Diesel engine, Air motor|
|Output||5 m3/h||9 m3/h|
|Max.convey dist.||35 m||35 m|
|Max.aggregate size||φ15 mm||Φ22 mm|
|Concrete slump||8-15 cm||8-15 cm|
|Hose inner size||φ51/57 mm||φ57/64 mm|
|Operating air pressure||0.2-0.6 MPa||0.2-0.6 MPa|
|Air consumption||9-10 m3/min||10-12 m3/min|
|Discharge height||1.17 m||1.17 m|
|Rotor Rev.||11 r/min||11 r/min|
|Main electric motor power||7.5 kW||7.5 kW|
|Dosing pump rated pressure||0.6 MPa||0.6 MPa|
|Overall dimension||2050×950×1180 mm||2150×950×1180 mm|
|weight||1050 kg||1100 kg|
|Driving Type||Electric Motor or Diesel Engine|
Dry and wet shotcrete spraying concrete machine description

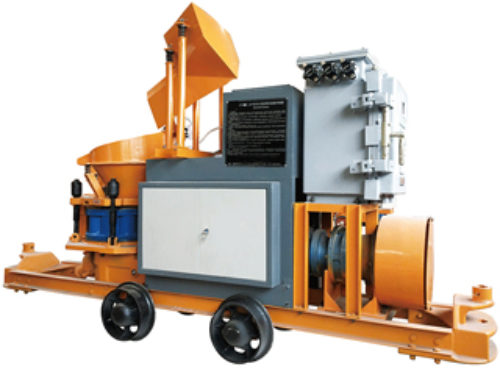

SPZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. SPZ3000 due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.

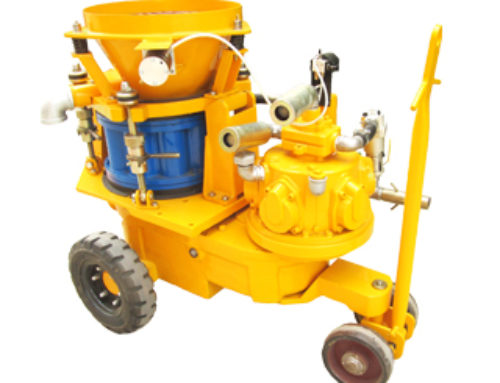

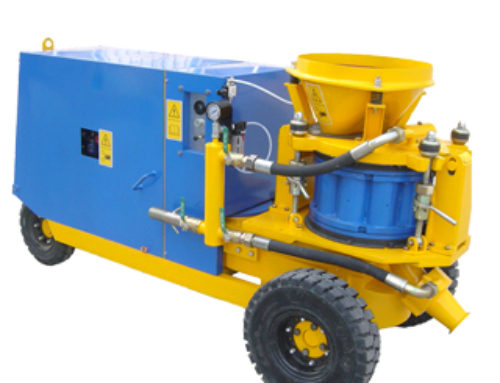

Extended (optional):Air motor drive or diesel drive combined with Skid or Rail-wheel.
SPZ3000 both dry and wet shotcrete spraying concrete machine features:
It can both for dry and shotcrete concrete spraying. Its spare parts are very durable.
Features of Dry Mix Gunite Shotcrete Machine
1:Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period;
2:Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life;
3:Low pressure and low speed wortex air transport;
4:Well compact and seal, small dust, durable rubber plate;
5:Apply to steel fiber or chemical fiber concrete spraying.
Applications Of Dry Mix Gunite Shotcrete Machine
The power system is consisted by technical diesel engine or electrical engine. It can drive the pumping system directely which samplized the linkage structure and improved the efficiency. Strong power system reduced the rate of occuring faults;
The main hydraulic pump and valve group of hydraulic system is adopted Gemany Rexroth open-style system with accurate and reliable exchanging;
The elements of electrical controlling system is adopted Japan and Gemany’s original parts.The excellent assembly quality fully guaranteed the function of electrical controlling system;
The special design of hopper and vane reduces the space of mixing blind angle thus makes the machine suitable for many kinds of concrete;
The Intelligentize & hommization design,easy to care and operate;
The specific configuration can be changed according to client’s situation.
