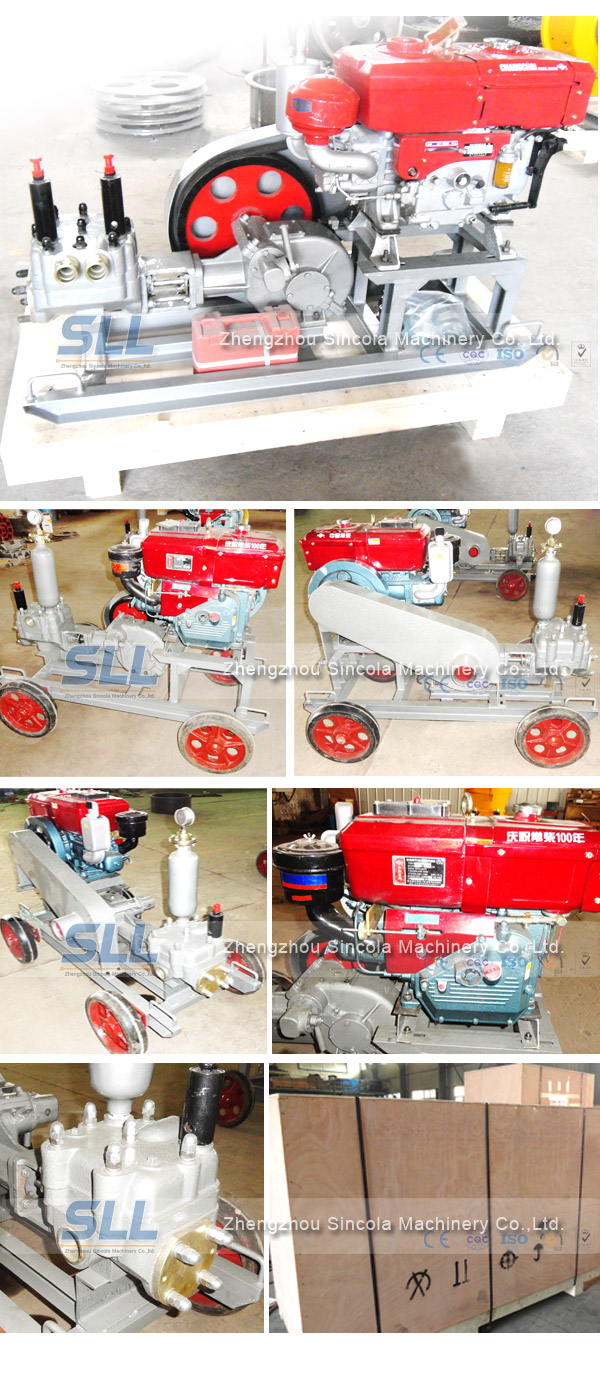

Diesel Engine Piston Grouting Pump
Product Details:
| Place of Origin: | Zhengzhou,China |
|---|---|
| Brand Name: | SINCOLA |
| Certification: | ISO,CE,SGS |
| Model Number: | SG130-20 , SG6040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sets |
|---|---|
| Price: | USD2980-4986 |
| Packaging Details: | Nude Package in 20ft container |
| Delivery Time: | 7days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1sets 7day |
| Model | SG130-20 , SG6040 | Output: | 130 L/min 60 L/min |
|---|---|---|---|
| Pressure: | 2 MPa(20bar/290psi) 4 MPa(40bar/580psi) | Cylinder Dia: | φ75 mm |
| Piston stroke: | 85 mm 85 mm | Piston Speed: | 180 /min 85 /min |
| Inlet diameter: | 51 mm 38 mm | Outlet diameter: | 38 mm 32 mm |
PRODUCTS LIST
| Item | SG130-20 | SG6040 |
| Work elements | single Kolbenzylinder double action.spherical valve reversing | single Kolbenzylinder double action.spherical valve reversing |
| Output | 130 L/min | 60 L/min |
| Pressure | 2 MPa(20bar/290psi) | 4 MPa(40bar/580psi) |
| Cylinder Dia | φ75 mm | φ75 mm |
| Piston stroke | 85 mm | 85 mm |
| Piston Speed | 180 /min | 85 /min |
| Inlet diameter | 51 mm | 38 mm |
| Outlet diameter | 38 mm | 32 mm |
| Power unit | 5.5 kW(Electric) 10hp(Diesel) | 5.5 kW(Electric) 10hp(Diesel) |
| Transmission | V-belts +gear case | V-belts +gear case |
| Chassis | Skid | Skid |
| Weight | 260 kg | 210 kg |
| Dimensions | 1400×650×920 mm | 1280×485×645 mm |
| Note：Single or Double Passageway.Skid or Tyre | ||
Introduction of Mechanical Piston Grouting Pump
Single cylinder. double-acting grouting pump with gear reducer, which is a universal medium-pressure grouting pump.
The SG6040 & SG130-20 is a piston-grouting pump for the processing of middle pressure grouting. The machine is suitable for grouting with either of single slurry and two different slurries. It can be widely used for tunnels, slope, mining, bridge and all sorts of underground engineering etc.
Features of SG6040 & SG130-20 Mechanical Piston Grouting Pump Features
1.Single piston double-acting;
2.Gear&vee belt transmission makes this pump high mechanical efficiency and working reliability;
3.Integrated valve house and ball valve, together with compact structure;
4.Body of pump is made of aluminum casting,low weight is an advantage for transport;
5.Grouting/pumping slurry.cement mortar and sand mortar etc;
6.Can complete double slurry grouting and single slurry grouting.
Advantages of SG130-20:
Compact & light weight : The pump is so compact that it even go into the boot of a car.Body of pump is made of aluminum casting: about 2 1/2 times lighter than iron casting used by other manufacturer.Powerful & Durable: With a discharged pressure of 20 kg/cm2. This pump is ideal for almost all soil drilling operations.Economical & Easy Simple design makes maintenance easy and economical Maintenance: Easy availability of parts at reasonable prices.
