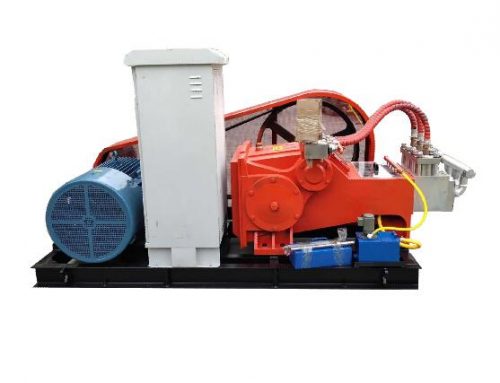

High pressure hydraulic pressure grouting Pump

Product Details:

Place of Origin:	Zhengzhou,China
Brand Name:	SINCOLA
Certification:	ISO,CE,SGS
Model Number:	SBW320, SBW250 , SBW160, SBW150

Payment & Shipping Terms:

Minimum Order Quantity:	1sets
Price:	USD4980-20986
Packaging Details:	Nude Package in 20ft container
Delivery Time:	5days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1sets 5day

Chat Now!	Inquiry

Model	SBW320, SBW250 , SBW160, SBW150	Output:	32-320 L/min
Pressure:	1MPa-8MPa	Cylinder Dia:	φ51mm 64mm
Input speed:	500-610(r/min)	Inlet pipe ID :	51 76 (mm)
Outlet pipe ID :	25-51(mm)	Motor power :	7.5-30(KW)

PRODUCTS LIST

Parameters

Model	Pump speed (r/min)	Output (L/min)	Pressure (Mpa)	Input speed (r/min)	Inlet pipe ID (mm)	Outlet pipe ID (mm)	Motor power (KW)	Dimension (mm)	Weight (kg)
SBW150	222	150	1.8	580	51	25-32	7.5	1155795 995	500
	130	90	3.2
	86	58	4.8
	57	38	7
	183	125	2.3
	107	72	4
	71	47	6
	47	32	7
SBW160	200	160	2.5	610	51	32	11	1100995 650	700
	132	107	4
	83	67	6.5
	55	44	10
SBW250	200	250	2.5	500	76	51	15	1100995 650	760
	116	145	4.5
	72	90	6
	42	42	6
BW320	214	320	4.0	500	76	51	30	1280855 750	650 (no motor and air chamber)
	153	230	5.0
	109	165	6.0
	78	118	8.0

Media

mud cement grouting pump

Introduction

Introduction of Mud cement Grouting Pump

1.SBW series slurry pump is widely used for grouting and mud jacking in engineering construction. 2.SBW250 slurry pump have two cylinders with different diameters and four gear shifts.Output and drilling depth are adjustable,so it can be used to grout cement slurry or equipped with 1500m drilling machine. 3.SBW160/10 slurry pump is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration (within 1000m of the drilling depth)etc.

Features

Features of SBW Mud Grouting Pump Features

1.SBW series slurry pump is horizontal triplex grout pump with high stability and high pressure.
2.Eight gear shift to adjust the flow, large output capacity, simple operation.
3.High quality pump parts, less wearing parts, long service life, low construction cost.
4.Fast suction-discharge speed, high pump efficiency.
5.Less noise and dust, environmental operation.

Application

Application of Mud grout pump

1.SBW series slurry pump is widely used for grouting and mud jacking in engineering construction. 2.SBW250 slurry pump have two cylinders with different diameters and four gear shifts.Output and drilling depth are adjustable,so it can be used to grout cement slurry or equipped with 1500m drilling machine. 3.SBW160/10 slurry pump is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration (within 1000m of the drilling depth)etc.
