Project Description

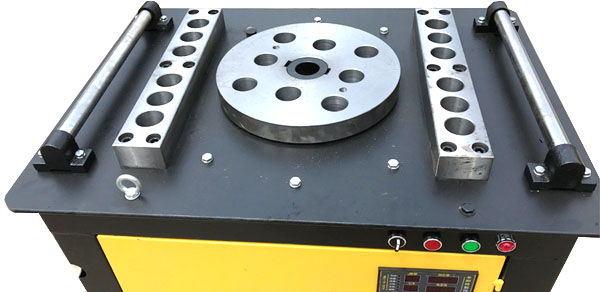

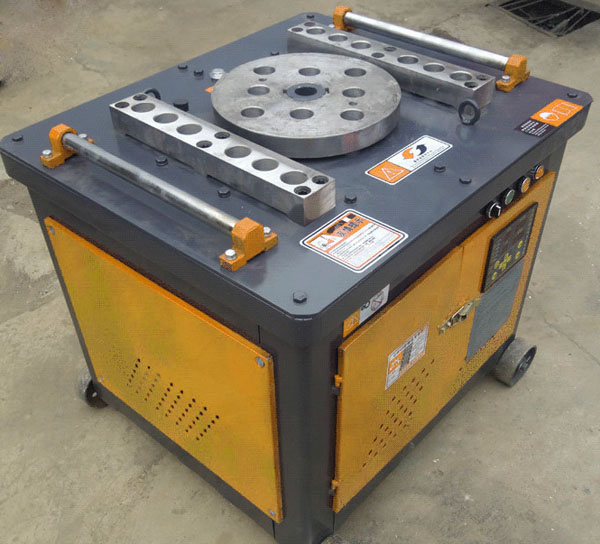

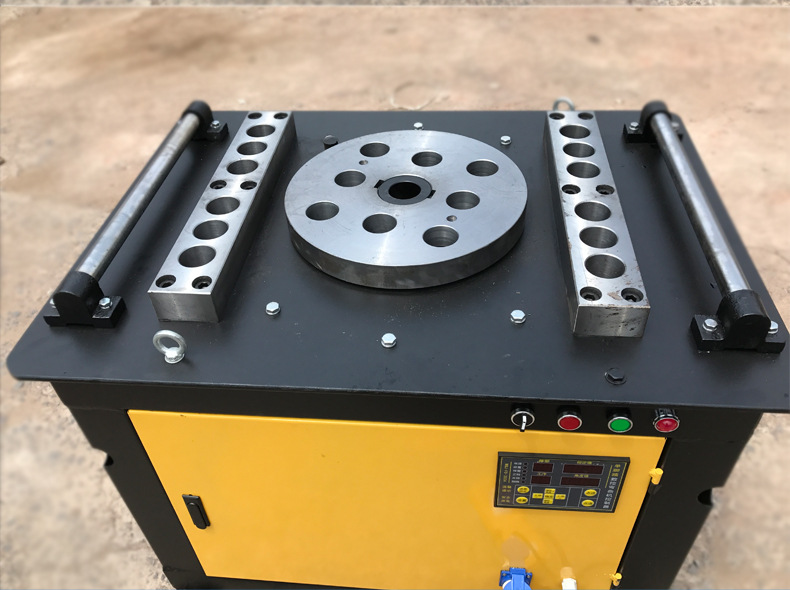

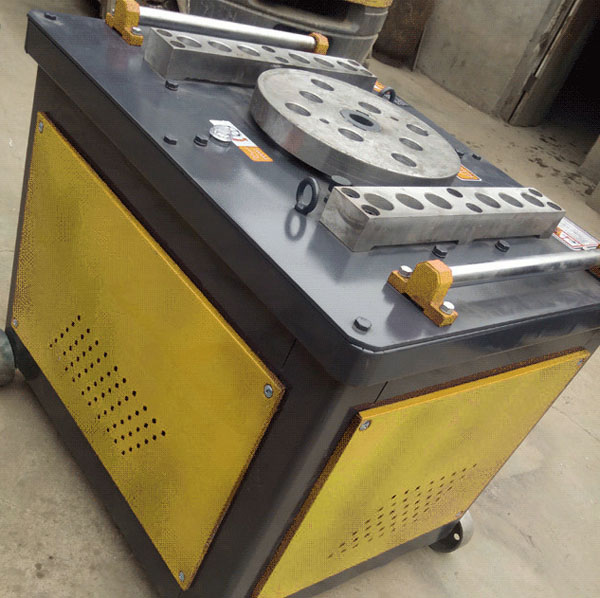

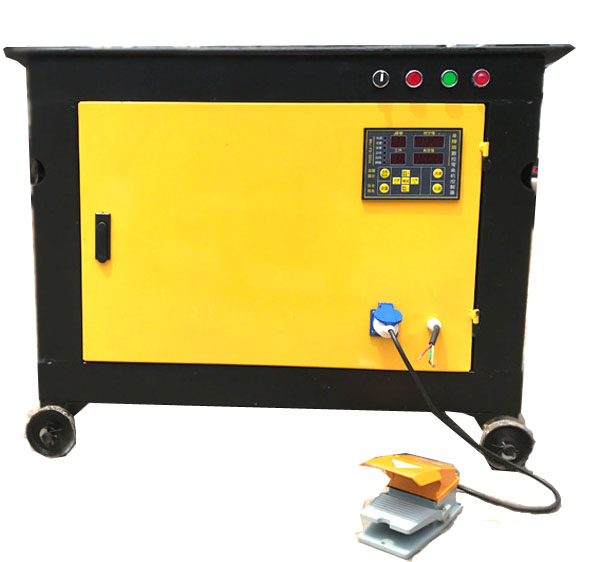

Steel bar bending machine

Product Details:

Place of Origin: Zhengzhou,China
Brand Name: SINCOLA
Certification: ISO,CE,SGS
Model Number:  SWH

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: USD500-4000
Packaging Details: Standard wooden packing OR Nude Package in 20ft container
Delivery Time: 1days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 6sets 1day
Chat Now!
Inquiry
Model SWH-40 Bending bar diameter: 3240mm
Radius of curved circular arc:  300mm Bending speed 20m/min
Power:  4kw Weight:  600kg

PRODUCTS LIST

Specification
SWH24 SWH32 SWH40 SWH45 SWH50
Bending bar diameter Φ12—24mm Φ25—32mm Φ32—40mm Φ40—45mm Φ45—50mm
Radius of curved circular arc ≥100mm ≥150mm ≥300mm ≥400mm ≥500mm
Bending speed 20m/min 20m/min 20m/min 20m/min 20m/min
Motor power 3KW 4KW 4KW 4KW 5.5KW
motor speed 1440r/min 1440r/min 1440r/min 1440r/min 1440r/min
Voltage 380V 380V 380V 380V 380V
Shape size(mm) 860*600*700 960*760*800 1180*1000*880 1180*1000*880 1180*1000*880
Whole machine quality 360KG 430KG 600KG 630KG 680KG
steel bar bending machine

steel bar bending machine

steel bar bending machine

steel bar bending machine

steel bar bending machine

steel bar bending machine

steel bar bending machine

steel bar bending machine

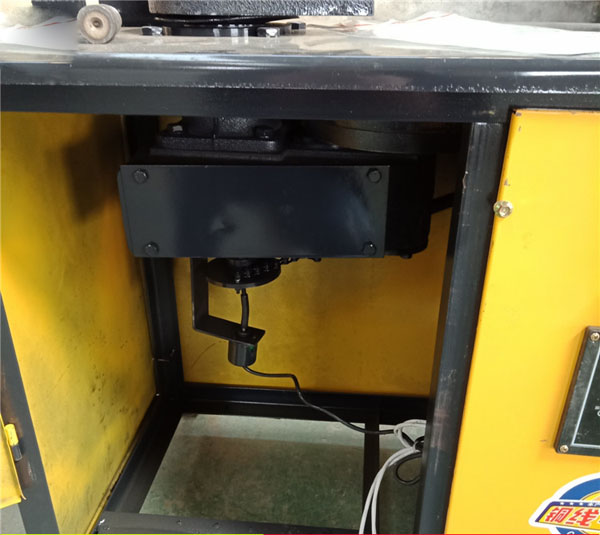

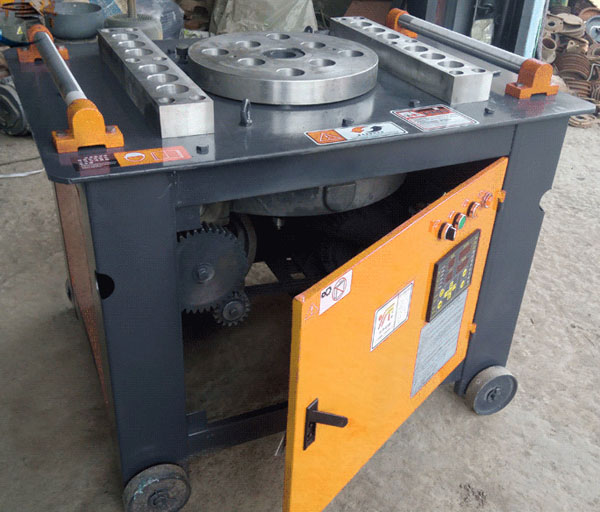

SWH40 adopts the fully enclosed gear box for less distortions even under the condition of heavy loads.

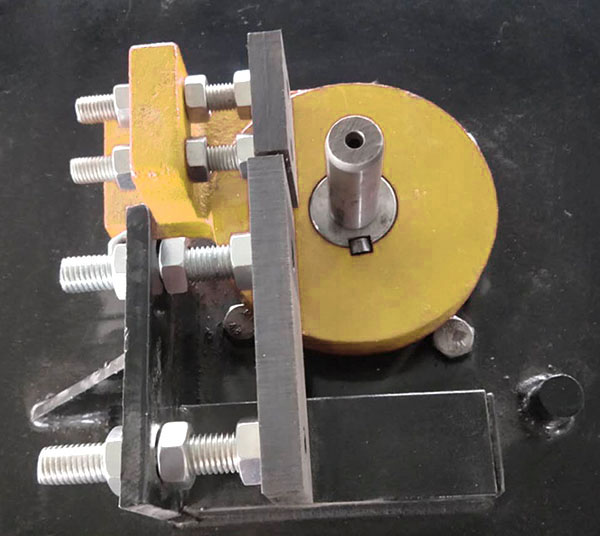

Gear shaft, working disk, stop gauge,saddles,pipe head and pile head bushes made of forged high-quality.

Alloyed steel with proper heat(quenching/temering/high frequency)and 2mm thick external case to ensure high.

Performances also under heavy loads and long working life.

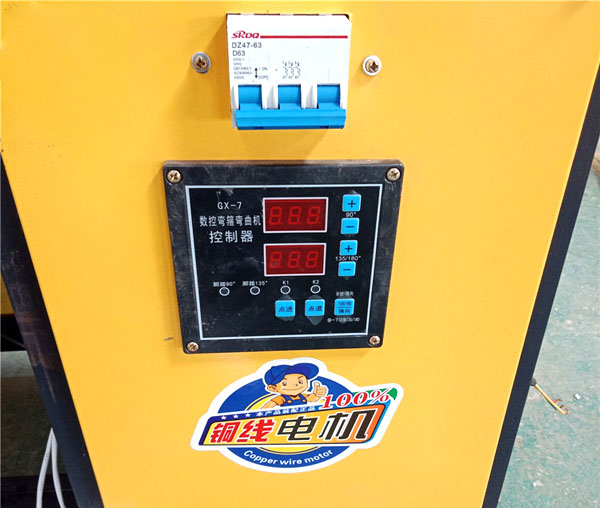

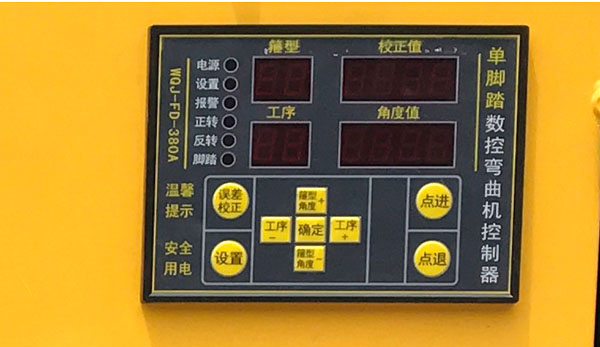

Two limit-switch to ensure the accuracy of the bending angle.

steel bar bending machine

steel bar bending machine

Features of steel bending machine:

All the parts are strictly made according to the standard issued by the ministry. The gears are treated with high frequency quench, having the functions of high load moment, stable and reliable performance.

steel bar bending machine

steel bar bending machine

Application range of steel bending machine:

Steel bending machine is mainly used to bend the round steel with 6-50mm in diameter and the screw-thread steel with 8-40mm in diameter of the II class.
