Concrete cement boom pump truck

Product Details:

Place of Origin: Zhengzhou,China
Brand Name: SINCOLA
Certification: ISO,CE,SGS
Model Number: SL22THB38

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: USD21120-24350
Packaging Details: Nude Package in 20ft container
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1sets 15day
Chat Now!
Inquiry
Model SL22THB38 Output: 110 m3/h/65 m3/h
Chassis model: CXZ51Q ( Japan ) Reach height: 38m
Power: 302KW Engine power: 287kw
Power: Diesel engine Weight: 27640kg

PRODUCTS LIST

Vehicle SL22THB38
Length 9400 mm
Width 2350 mm
Height 3400 mm
Total weight 14985 kg

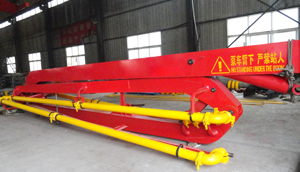

Boom & outrigger No. of section 3
Vertical reach 22 m
Horizontal reach 17.2 m
Reach depth 11.5m
1st section length 6800 mm
Articulation 90°
2nd section length 5000 mm
Articulation 180°
3rd section length 8875 mm
Articulation 270°
4th section length 4500 mm
Articulation 220°
Rotation ±360°
Output Low pressure 65 m3/h
High pressure 110 m3/h
Pressure Low pressure 6.5 MPa
High pressure 8 MPa
Max. Strokes Low pressure 16 times/min
per minutes High pressure 12 times/min

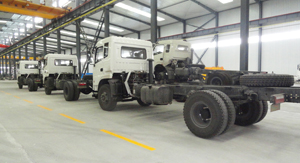

Chassis Chassis model FOTON
Engine power CUMMINS  125 kw (r/min)
Emission standard National III ( IV)
Displacement 3760ml
Max. speed 110km/h
Ground clearance 260 mm
Wheel base 5200/4700 mm
concrete pump truck

concrete pump truck

concrete pump truck

concrete pump truck

concrete pump truck

concrete pump truck

concrete pump truck

concrete pump truck

concrete pump truck

concrete pump truck

concrete pump truck

concrete pump truck

The Truck-mounted Concrete Boom Pump is a specially designed product among the middle and short arm pump truck, fill in the blank of truck-mounted concrete boom bump with short and medium jib structure.

It is a high efficient concrete conveying equipment integrating driving, pumping, placing.

Concrete Pump truck  has features of good maneuverability, short preparation time, high efficiency, good construction quality, less pollution of the environment. It is widely used in large-scale infrastructure constructions such as bridge, electric power plant, steel works, water disposal plant and high-rise building constructions.

  • High safety coefficient.Stepper motor imported from America and driver to control the engine speed.

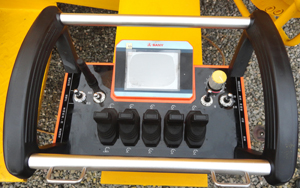

  • More intelligent operation. The control system has the function of engine remote flame-out. You can start or stop the engine work according the working condition.

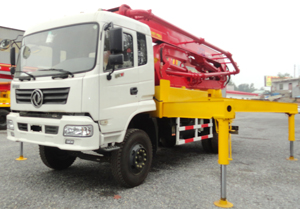

  • High design standard. X leg, the car body is shot and the stability is good, the supporting leg can be unfolded out in a narrow space.
  • International purchased component, which is with more high stability performance and high cost-efficiency.
  • Pumping hydraulic system. Overall hydraulic commutation system; the alternative commutation actions between pumping and S tube distribution doesn’t involve electric signals;
  • Adopt concentration plateto make the mail hydraulic system valve more concentration, reduce the pipeline road cross, save every drop of oil pump.
  • Automatic control.Unique arm frame buffer technology can reduce the high pressure value system, even in the case of high output to make the boom steady;
  • Efficient pumping. Large diameter cylinder, big pump flow.
