Project Description

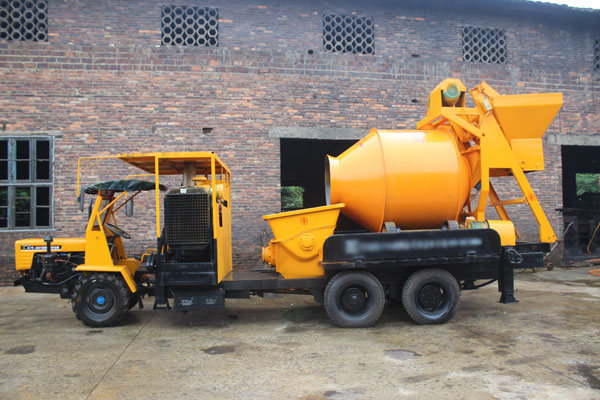

Portable Concrete Pump With Mixer
Product Details:
| Place of Origin: | Zhengzhou,China |
|---|---|
| Brand Name: | SINCOLA |
| Certification: | ISO,CE,SGS |
| Model Number: | JBT30S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sets |
|---|---|
| Price: | USD18000-25000 |
| Packaging Details: | Standard wooden packing OR Nude Package in 20ft container |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 set/month |
| Model | JBT30S-13 |
| Mixing Capacity(m3/h) | 15 |
| Pumping Capacity(m3/h) | 30 |
| Mixing Power(kw) | 8 |
| Winding Motor Power | 4.5KW |
| Pumping Motor Power | 37KW |
| Max. Size of Aggregates (mm) | Rubble 40 pebble 30 |
| Hopper capacity x Discharge Height (mm) | 600×1070 |
| Distribution Value | S Valve |
| Cleaning Method | Water Cleaning |
| Overall Dimensions L×B×H (mm) | 5112×2091×3514 |
| Weigh (kg) | 4800 |
PRODUCTS LIST
| Model | JBT30S-13 |
| Mixing Capacity(m3/h) | 15 |
| Pumping Capacity(m3/h) | 30 |
| Mixing Power(kw) | 8 |
| Winding Motor Power | 4.5KW |
| Pumping Motor Power | 37KW |
| Max. Size of Aggregates (mm) | Rubble 40 pebble 30 |
| Hopper capacity x Discharge Height (mm) | 600×1070 |
| Distribution Value | S Valve |
| Cleaning Method | Water Cleaning |
| Overall Dimensions L×B×H (mm) | 5112×2091×3514 |
| Weigh (kg) | 4800 |
concrete mixer with pump
The small concrete pump with mixer, can instead of the five or six people work, but also improve the work efficiency many times. Using a forklift to sand and gravel, cement and other materials into mixing pump, operated by remote control mixing hopper feeding pump, and pump itself after mixing, pump to the floor, etc, the whole operation is fairly simple, basic liberated labour, Moreover the mixing pump has small volume, convenient transferring, low energy consumption, etc.
concrete mixer with pump
The diesel movable concrete pump has been widely used in water conservancy, electricity, railway, highway, tunnel, mine, national defense, etc. the capacity covers from 15m3 to 90 m3 per hour, vertical distance can reach up to 70 meters high, horizontal distance can ga as far as 250 meters.
concrete mixer with pump
Better stability:The pump adopts Kawasaki hydraulic pump and import group valve to better stability and longer service life.
Strong transfer capability:With 200-230mm transfer pipe, the pump can transfer more concrete and deal with aggregate diameter in 40mm.
Lager hopper:With 0.65m3hopper, the dump can be high capability and less surplus.
High efficiency:The dump is more automatable, and can save labor. The hydraulic outrigger we adopted in the product can save configuration time than3times.
concrete mixer pump
